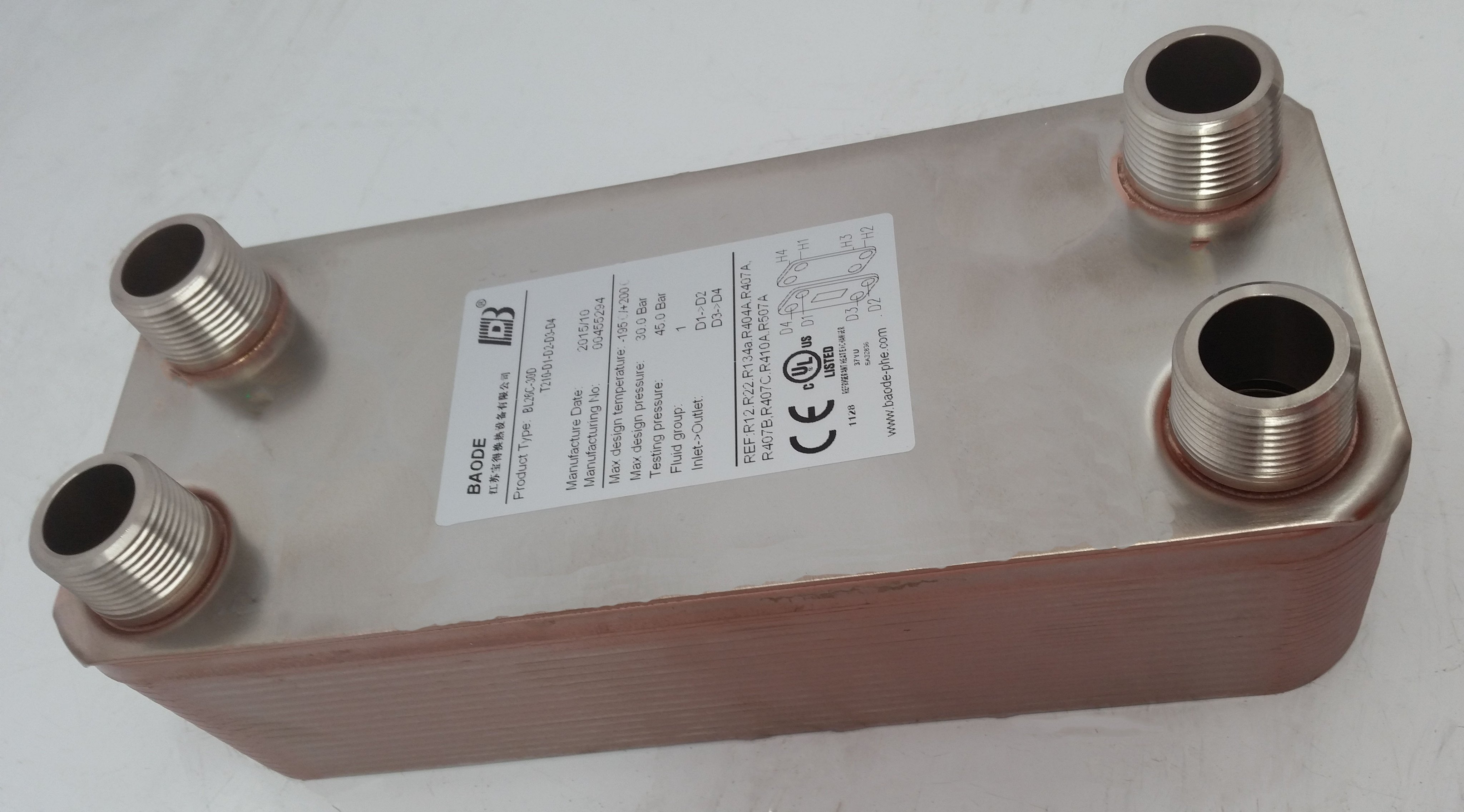

10 Plate Water to Water Brazed Plate Heat Exchanger 1" MPT Ports w/ Brackets

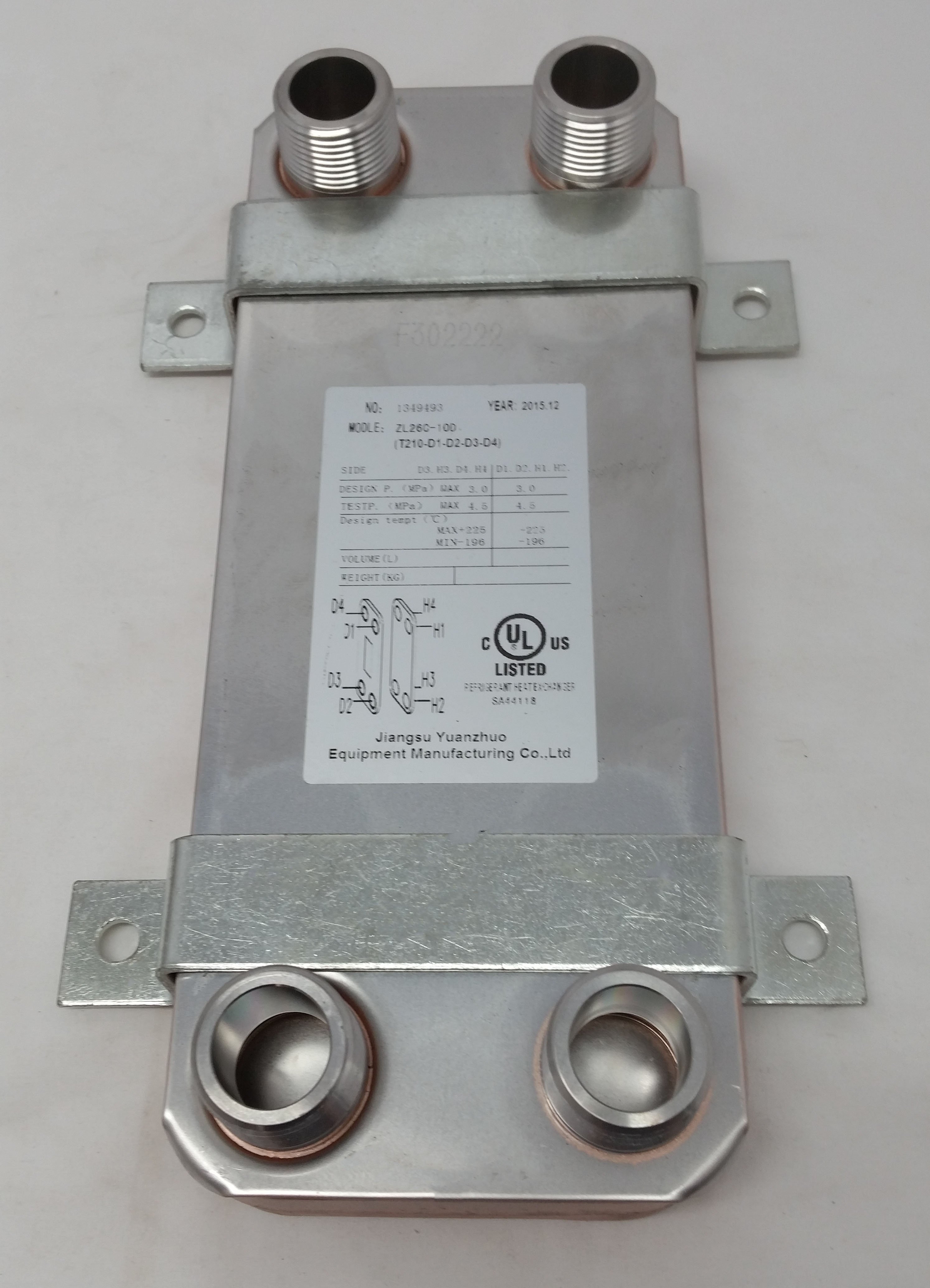

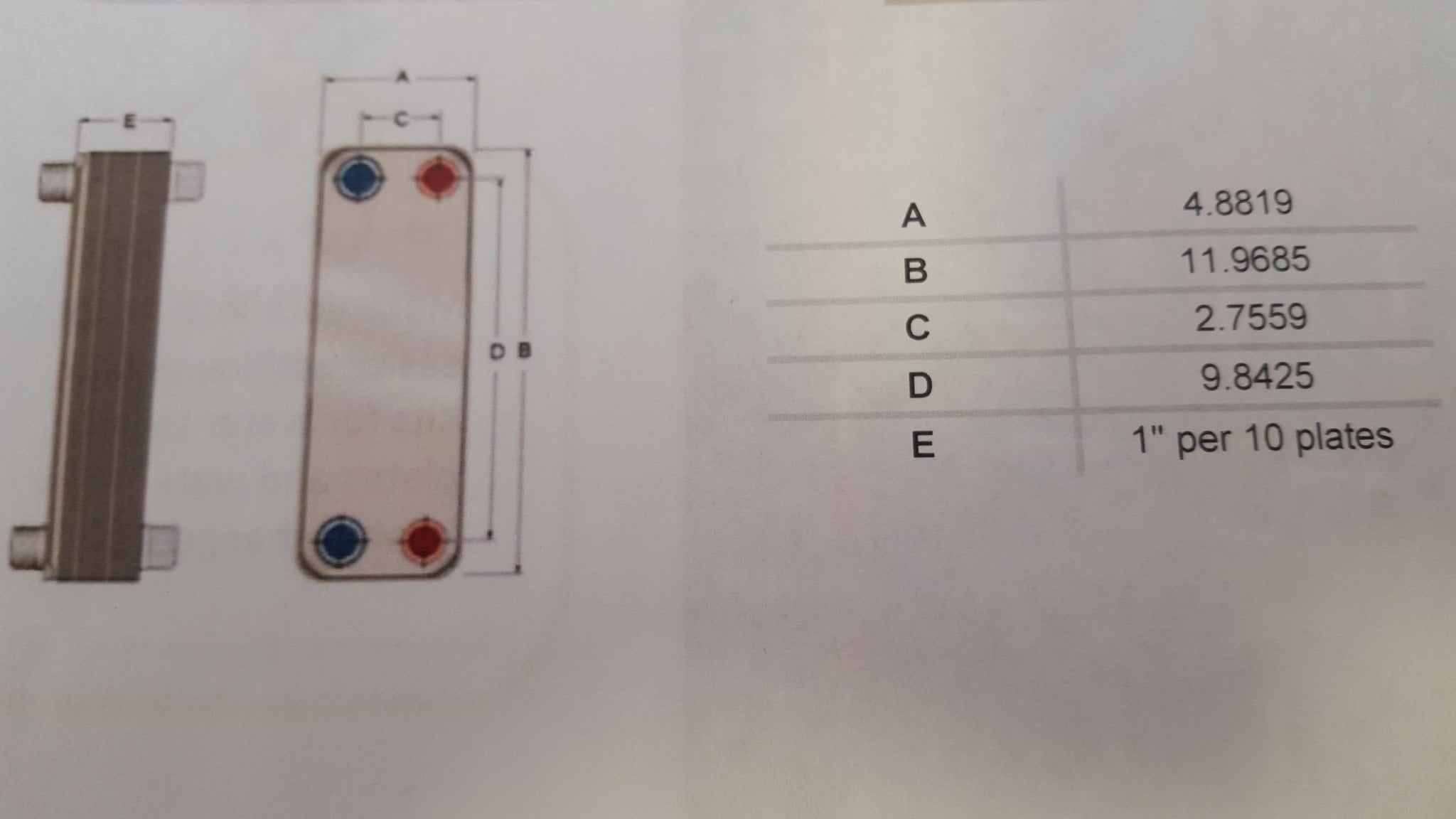

<h2 style="text-align: center;"><span style="text-decoration: underline;"><strong>10 Plate Water to Water Brazed Plate Heat Exchanger with InstallBrackets.</strong></span></h2><h3 style="text-align: center;"><strong>* 40,000 BTU </strong></h3><h3 style="text-align: center;"><strong>* GPM 3.5 </strong></h3><h3 style="text-align: center;"><strong>* 1” NPT Ports</strong></h3><h3 style="text-align: center;"><strong> * Dimensions – 5”x12”x1” </strong></h3><h3 style="text-align: center;"><strong>* Pressure Drop 5.175</strong></h3><p align="center" style="text-align: left;">These are true 5" x 12" Units, if hooking up to an indoor boiler do not settle for anything smaller in width or length.</p><p align="center" style="text-align: left;">These are made of 316 Stainless Steel and are UL listed, do not settle for ones made of 304 stainless. These are an expensive item and no reason to have to replace them sooner thanneeded</p><p><b>Not to be used for transferring steam!</b></p><p align="center" style="text-align: left;">We provide a <strong><u>lifetime warranty</u></strong> against manufacturer's defects and 3 yearson corrosion.</p><p></p><div align="center"><table width="491" border="0" cellspacing="0" cellpadding="0"><tbody><tr><td width="491" colspan="2"><p><b><span>Brazed plate heat exchanger</span></b><span></span></p></td></tr><tr><td width="491" colspan="2"><p><b><span></span></b></p></td></tr><tr><td colspan="2"><p><span>Plate material: stainless steel AISI 316L</span></p></td></tr><tr><td colspan="2"><p><span>Brazing material: Copper</span></p></td></tr><tr><td width="324"><p><span></span></p></td><td width="168"><p><span>5x12 plate specs</span></p></td></tr><tr><td width="324"><p><span>Max pressure</span></p></td><td width="168"><p><span>652 lbs. per sq. in</span></p></td></tr><tr><td width="324"><p><span>Test pressure</span></p></td><td width="168"><p><span>971 lbs. per sq. in</span></p></td></tr><tr><td width="324"><p><span>Volume per channel (L)</span></p></td><td width="168"><p><span>0.05</span></p></td></tr><tr><td width="324"><p><span>Exchange area sq. ft.</span></p></td><td width="168"><p><span>.417 per plate</span></p></td></tr><tr><td width="324"><p><span>Max Temperature</span></p></td><td width="168"><p><span>437F</span></p></td></tr></tbody></table></div><p align="center"></p><p align="center" style="text-align: left;"><u></u>These are used for transferring heat from one hot water source to another without mixing the two different water sources. For example when hooking up a non pressurized furnace to an indoor boiler <strong><u>or</u></strong> for heating cold water before it goes into the hot water heater to eliminate the need for fuel to power your water heater.</p><p></p><p align="center" style="text-align: left;">They are good for preheating water to waterheaters and for transferring heat from an outdoor furnace or solar system to an indoor boiler. Other uses for them include, transferring heat from hot oil or cooling milk off a milk pipeline.</p><p align="left" style="text-align: left;">Sizingyour plate depends on several factors. Plates have BTU ratings of approximately 4,000 BTU per plate, ie a 10 plate is40,000 BTU and a 40 plate is 160,000 BTU. These ratings work very well for infloor heating, but if you are hooking to an indoor boiler, you will want to use a larger plate to do the same thing.A good rule of thumb is to look at the rating plate on your indoor boiler and find the BTU rating for it.</p>
